TESTO 890

The testo 890 thermal imager means you are ideally equipped both for professional industrial thermography and for building thermography.

Category

Testo 890 – Thermography for the highest demands

  • Infrared resolution 640 x 480 pixels testo Super-Resolution technology to 1280 x 960 pixels
  • Thermal sensitivity < 40 mK
  • Flexibility thanks to rotatable handle and fold-out, rotatable display
  • Exchangeable lenses
  • Special measurement mode for mould-risk areas
  • High temperature measurement up to 1,200 °C
  • Panorama image assistant
  • Site-Recognition technology
  • Fully radiometric video measurement and image sequence capturing

Description:

The thermal imager testo 890 offers outstanding image quality for the highest thermo-graphic demands. Thanks to the high-quality infrared measurement system with a 640 x 480-pixel detector, thermal images can be recorded in megapixel quality (1290 x 960) using the Super-Resolution technology. This means that even the smallest measurement objects such as electronic components or far distant measurement objects, e.g. on industrial plants, can be safely recorded thermo-graphically in best image quality and high resolution. Even thermal processes can be precisely analyzed over time using the fully radiometric video measurement: all measurement points of the thermal image are available, accurate to the pixel, at all times.

  • The testo 890 professional thermal imager means you are ideally equipped for the following applications:
  • Safe high-temperature measurement
  • Analysis of building shells at a glance

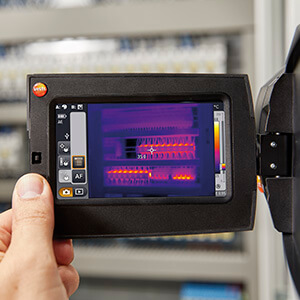

  • Regular checks in electrical maintenance

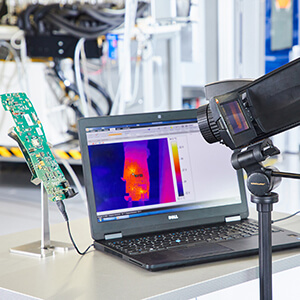

  • Precise visualization of critical temperatures on circuit boards
  • Carrying out detailed energy consultancy
  • Analysis of energy distribution systems

Recommended fields of application

  • Detecting structural defects and ensuring construction quality
  • Energy consulting (including building shell)

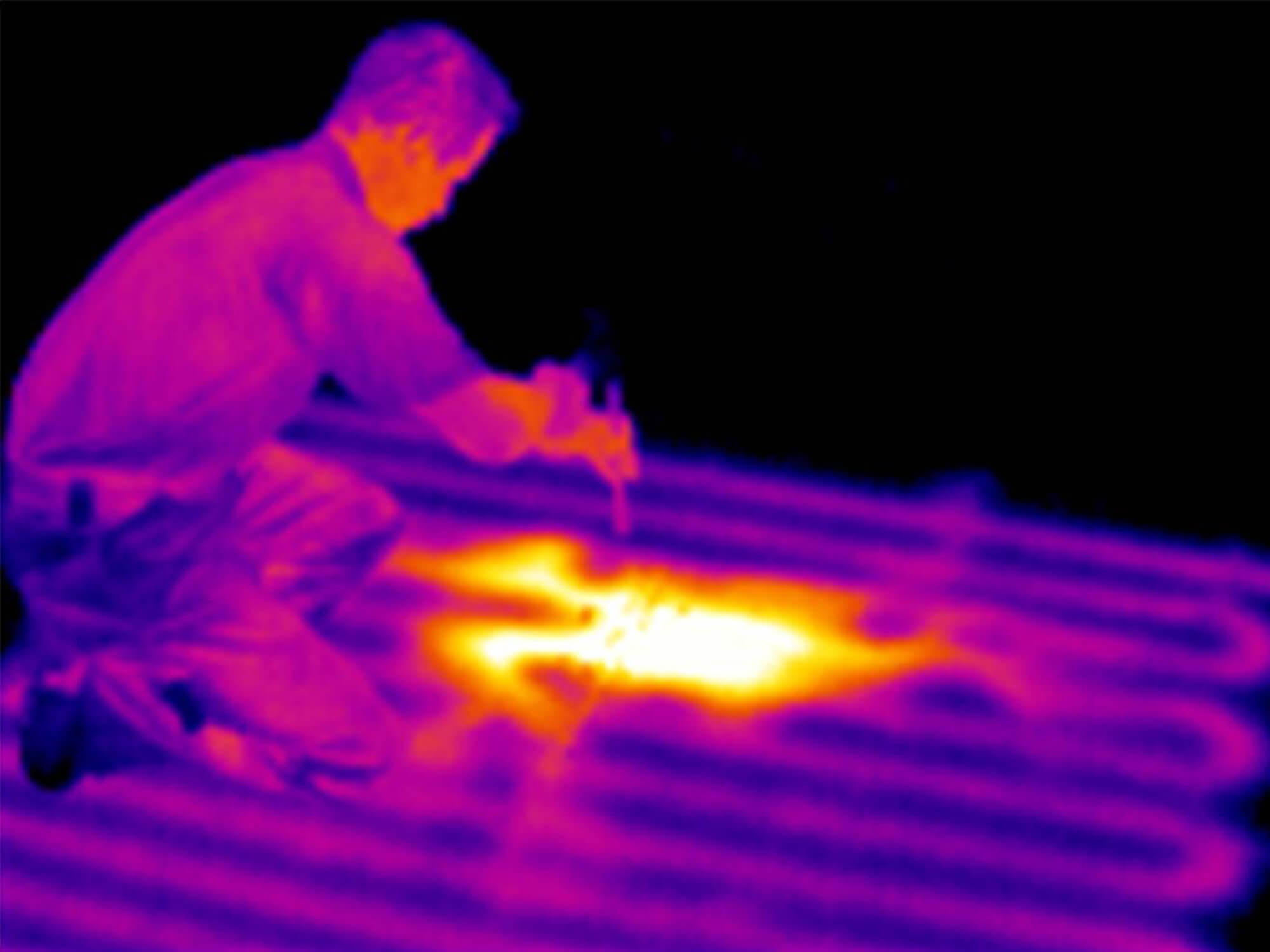

  • Leakage detection
  • Preventive maintenance
  • Research and development
  • Power generation and power distribution

Technical Data



Infrared image output
Infrared resolution 640 x 480 pixels
Thermal sensitivity (NETD) < 40 mK at +30 °C
Field of view/min. focus distance

(Lens version)

42° x 32° / 0.1 m (Standard)

25° x 19° / 0.2 m (25° Lens)

15° x 11° / 0.5 m (Telephoto)

6.6° x 5° / 2 m (Super-telephoto)

Geometric resolution (IFOV)

(Lens version)

1.13 mrad (Standard)

0.68 mrad (25° Lens)

0.42 mrad (Telephoto)

0.18 mrad (Super-telephoto)

SuperResolution (pixel / IFOV) (Lens version) 1280 x 960 pixels / 0.71 mrad (Standard)

1280 x 960 pixels / 0.43 mrad (25° Lens)

1280 x 960 pixels / 0.26 mrad (Telephoto)

1280 x 960 pixels / 0.11 mrad (Super-telephoto)

Image refresh rate 33 Hz*
Focus auto / manual
Spectral range 7.5 to 14 µm
Image output visual
Image size /

min. focus distance

3.1 MP / 0.5 m
Image presentation
Image display 4.3“ LCD touchscreen

with 480  x  272 pixels

Digital zoom 1- to 3-fold
Display options IR / real image
Video output USB 2.0, Micro HDMI
Colour palettes 9 (iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo)
Measurement
Measuring range -30 to +100 °C /

0 to +350 °C (switchable)

0 to +650 °C (switchable)

Accuracy ±2 °C, ±2 % of measurement value (larger value applies)

(±3 °C of m.v. at -30 to -22 °C)

High temperature measurement – optional Accuracy +350 to +1200 °C (not in connection with the super-telephoto lens)

±2 °C, ±2 % of m.v.

Emissivity / reflected temperature 0.01 to 1 / manual
Transmission correction (atmosphere)
Measuring functions
Display of surface mois- ture distribution (using manual input)
Humidity measurement with radio humidity probe (automatic measurement value transfer in real time)** (ü)
Solar mode
Analysis function up to 10 measurement points, Hot/Cold Spot  Recognition, up to 5 x area measurement (min/max & average), Isotherm and alarm values
Imager equipment
Digital camera
Lens version 42° x 32° (Standard)

25° x 19° (25° Lens)

15° x 11° (Telephoto)

6.6° x 5° (Super-telephoto)

SiteRecognition (measure- ment site recognition with image management) ü
Panorama image assistant
Laser (laser classification 635 nm, Class 2)*** Laser marker
Voice recording Bluetooth****/ wired headset
Video measurement (via USB) up to 3 measurement points

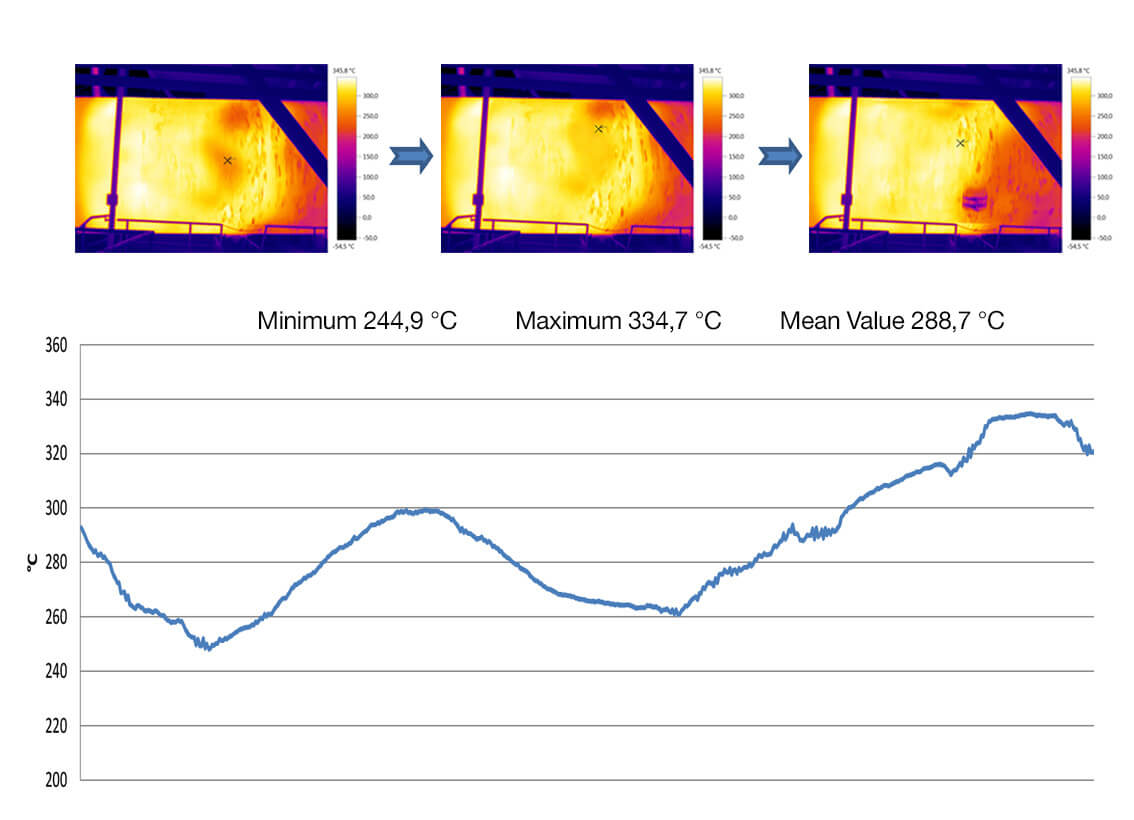

Process analysis package: image sequence capturing in instrument and

fully radiometric video measurement

(✔)
FeverDetection (✔)
Interface LabVIEW, interface description download on the Testo homepage
Image storage
File format single image .bmt; Exportmöglichkeit in .bmp, .jpg,

.png, .csv, .xls

File format video (via USB) .wmv, .mpeg-1 / Testo format (fully radiometric video)
Storage device SD cart  2GB (approx. 1500 – 2000 images)
Power supply
Battery type Fast-charging, Li-ion battery can be changed on-site
Operating time 4.5 hours
Charging options in instrument / in charger (optional)
Mains operation
Ambient conditions
Operating temperature range -15 °C to +50 °C
Storage temperature range -30 to +60 °C
Air humidity 20 to 80 % RH non-condensing
Housing protection class (IEC 60529) IP54
Vibration (IEC 60068-2-6) 2G
Physical specifications
Weight 1630 g
Dimensions (L x W x H) 253 x 132 x 111 mm
Tripod mounting 1/4“ – 20UNC
Housing ABS
PC software
System requirements Windows 10, Windows Vista, Windows 7 (Service Pack 1), Windows 8,

interface USB 2.0

Standards, tests
EU Directive 2004 / 108 / EC


*inside the EU, outside 9 Hz

** excepting USA, China and Japan

*** Wireless humidity probes only in the EU, Norway, Switzerland, USA, Canada, Colombia, Turkey, Brazil, Chile, Mexico, New Zealand, Indonesia

**** Bluetooth only in the EU, Norway, Switzerland, USA, Canada, Colombia, Turkey, Japan, Russia, Ukraine, India, Australia

***** depending on the selected set

Features testo 890 testo 890 Set
Infrared resolution

640 x 480 pixels

Thermal sensitivity (NETD)

< 40 mK

Measuring range

-30 to +650 °C

Image refresh rate

33 Hz*

SuperResolution
25° x 19° Lens (✔) (✔)
Telephoto lens 15° x 11° *****
Super-telephoto lens 6.6° x 5° ***** (✔)
Auto focus
High temperature measurement up to 1,200 °C (✔) (✔)
Panorama image assistant
SiteRecognition

(measurement site recognition with image management)

Laser marker**
Display of surface moisture distribution (by manual input)
Humidity measurement with wireless humidity probe*** (automatic measurement value transfer in real time) (✔) (✔)
HDMI interface
FeverDetection (✔) (✔)
Process analysis package: image sequence capturing in instrument and fully radiometric video measurement (✔) (✔)
Voice recording using the headset****
Solar mode
Lens protection glass (✔)
Additional battery (✔)
Fast battery charger (✔)
