TESTO 885

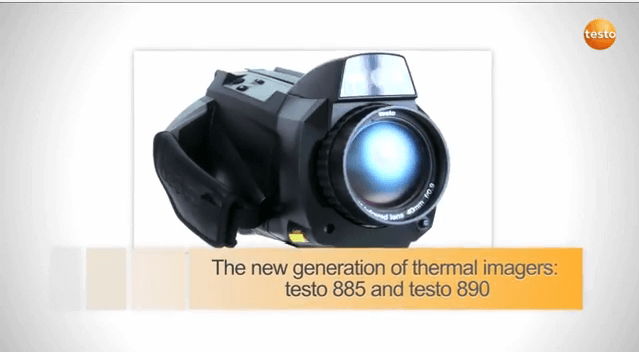

Professional thermography with all your practical needs: the testo 885 thermal imager for building and industrial thermography meets the highest requirements all on its own.

Category

Testo 885 – professional, versatile and precise thermography

  • Infrared resolution 320 x 240 pixels testo SuperResolution technology with 640 x 480 pixels
  • Thermal sensitivity < 30 mK

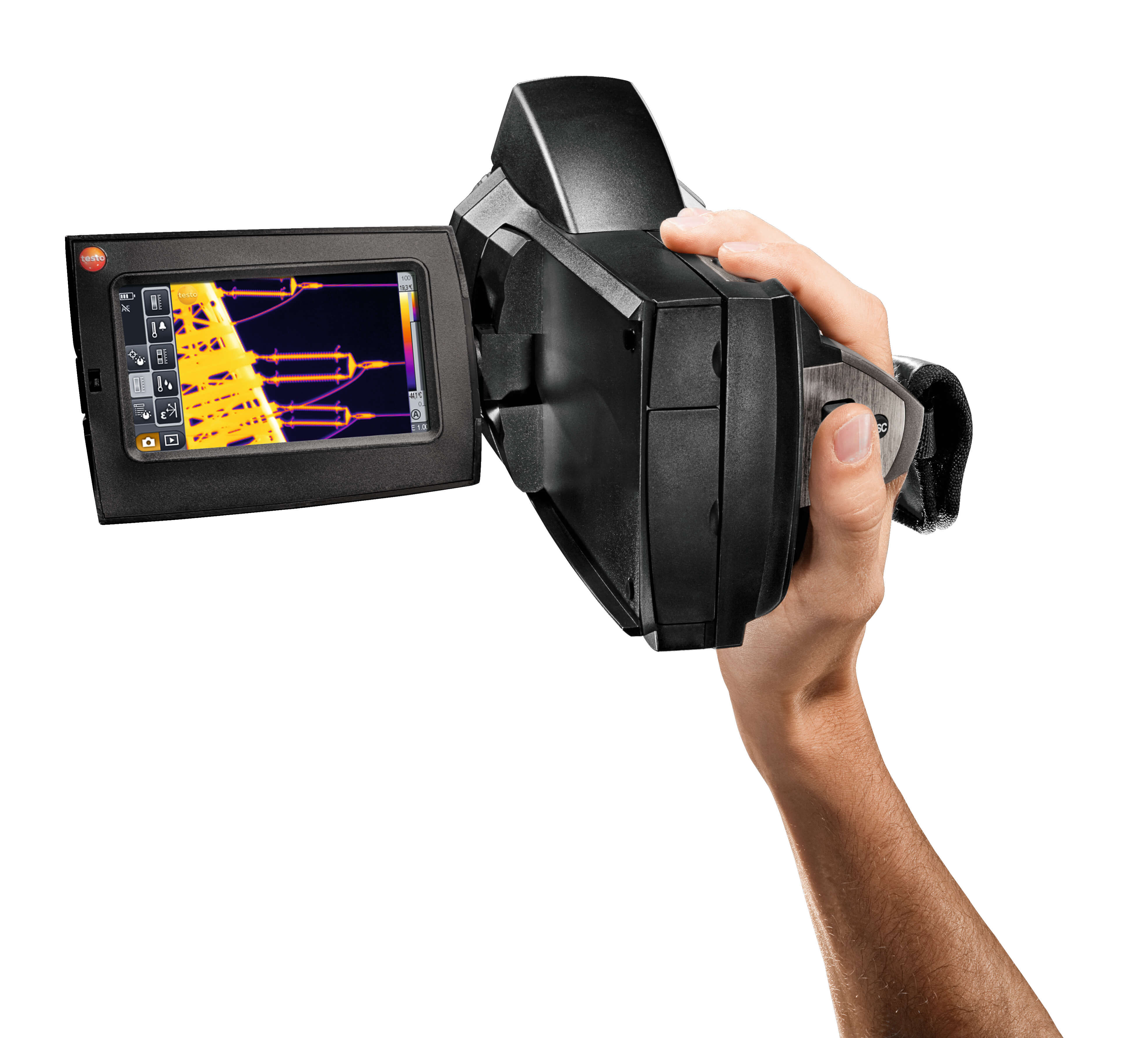

  • Flexibility thanks to its rotating handle and rotating, fold-out display
  • Exchangeable lenses
  • Measurement mode for detecting mould-risk areas

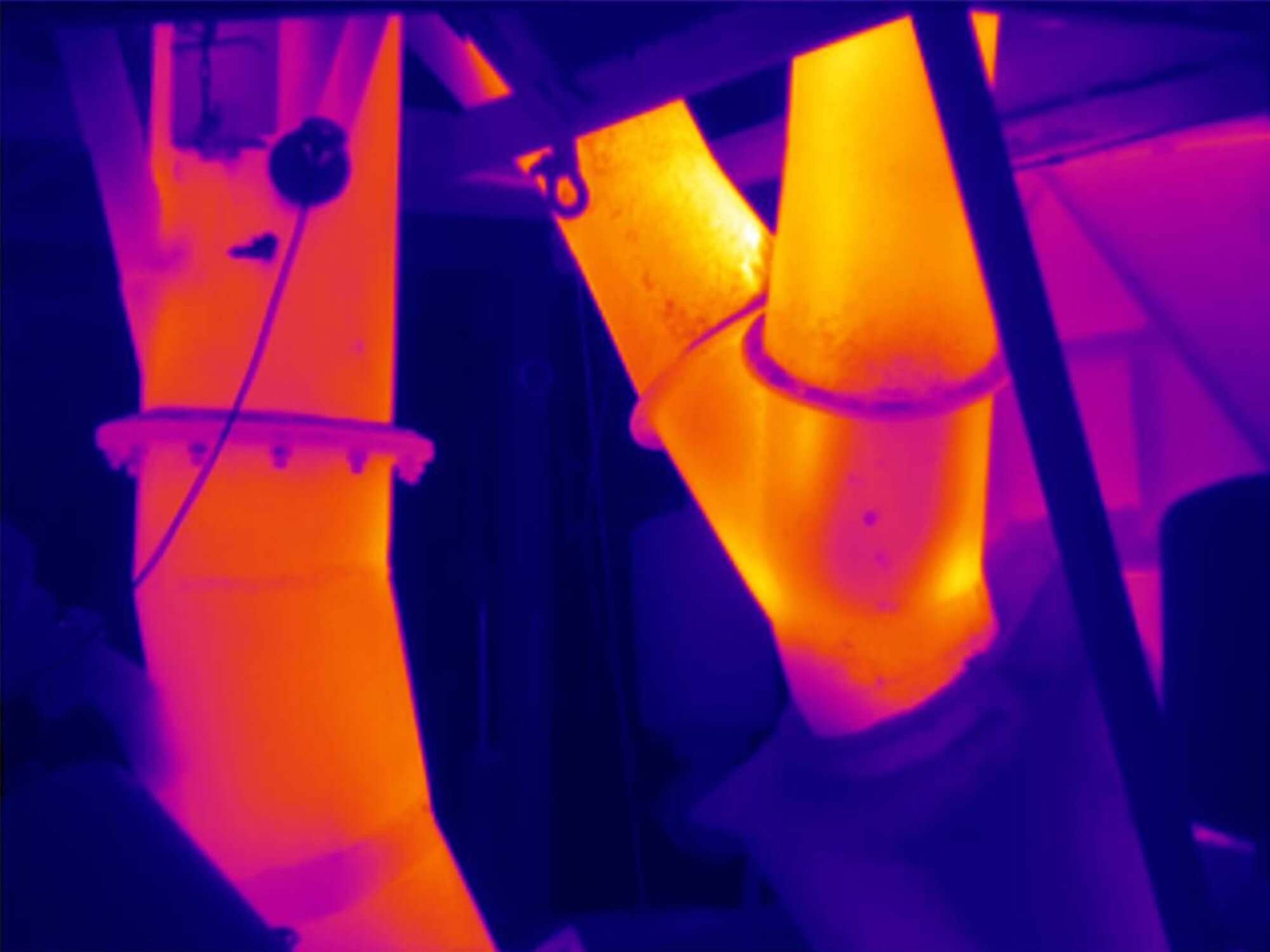

  • High temperature measurement up to 1200 °C
  • Panorama image assistant
  • Site-Recognition technology

Description:

The thermal imager testo 885 is the professional measuring instrument for the high-precision detection of anomalies and damage to building shells or interiors. The high-quality infrared measurement system means that energy losses or thermal bridges in building shells can be reliably detected, enabling comprehensive energy consultations to be carried out. Indoor leaks can be reliably located, without needing to dismantle cable or pipeline systems. The intuitive testo 885 with its rotating handle, fold-out display and lots of helpful functions, such as panorama image assistant and autofocus, makes it is possible to carry out both quick on-site checks as well as comprehensive energy consultations with professional reports simply, reliably and professionally.

 It can be used for the following measuring tasks:

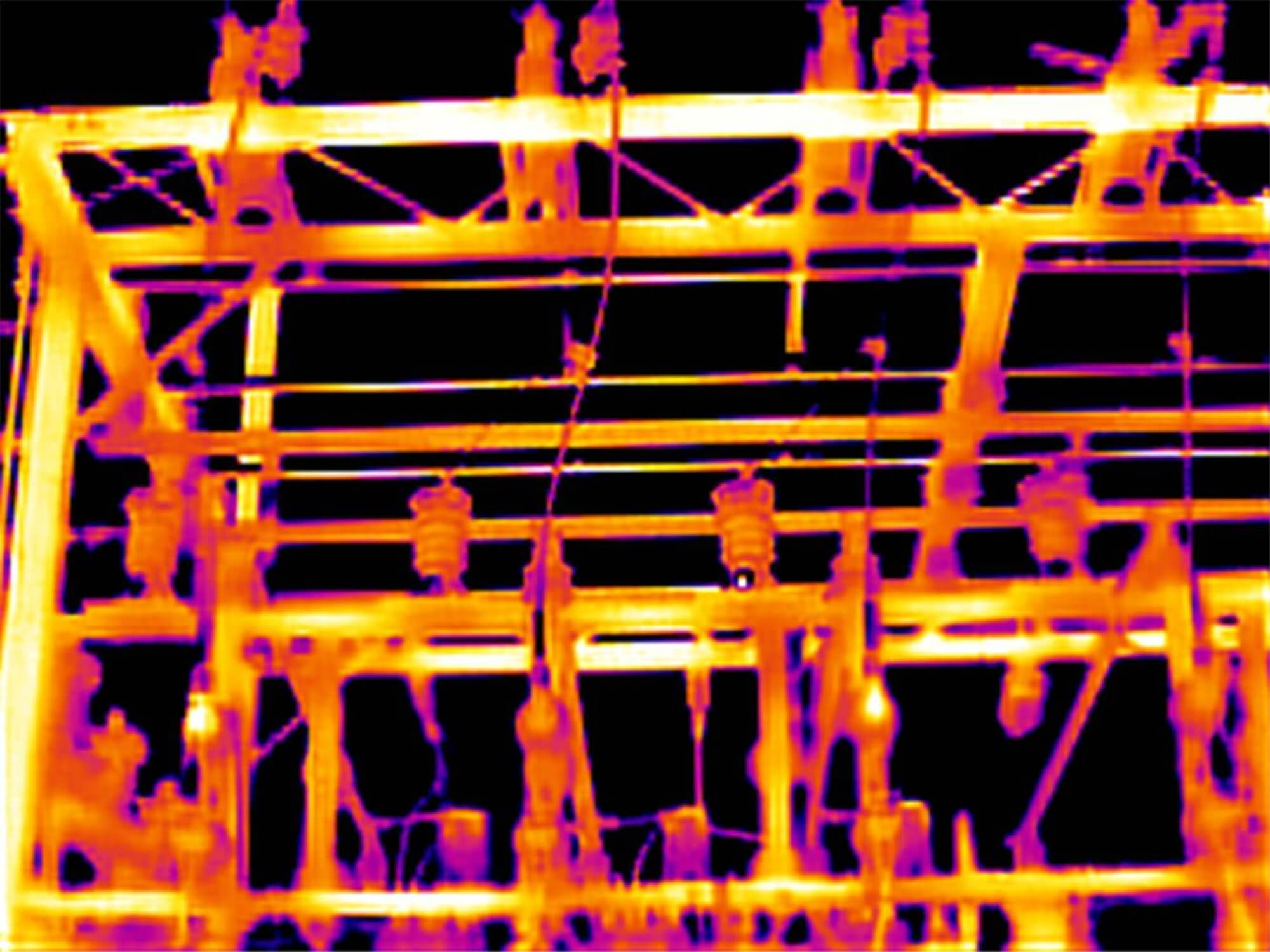

  • Inspecting high-voltage lines: the super-telephoto lens enables you to inspect even the smallest of connections from a long, safe distance
  • Monitoring and checking solar plants, including locating hotspots in solar parks.
  • Detecting irregularities in large industrial plants (e.g. refineries)
  • Safe high-temperature measurement & carrying out detailed energy consultations
  • Checks in electrical maintenance
  • Analysis of building shells at a glance
  • The exact fields of application depend on the choice of second lens.
  • Process analysis package (optional): the combination of fully radiometric video and sequence capturing in the camera.
  • FeverDetection (optional): use the assistant to check people for high body temperature in public places and in means of transport – for public health protection



Recommended fields of application

  • Detecting structural defects and ensuring construction quality
  • Energy consulting (including building shell)
  • Leakage detection
  • Preventive maintenance
  • Research and development
  • Power generation and power distribution

Technical Data

Infrared image output
Infrared resolution 320 x 240 pixels
Thermal sensitivity (NETD) < 30 mK at +30 °C
Field of view/min. focus distance

(Lens version)

30° x 23° / 0.1 m (Standard)

25° x 19° / 0.2 m (25° Lens)

11° x 9° / 0.5 m (Telephoto)

5° x 3.7° / 2 m (Super-telephoto)

Geometric resolution (IFOV)

(Lens version)

1.7 mrad (Standard)

1.36 mrad (25° Lens)

0.6  mrad (Telephoto)

0.27 mrad (Super-telephoto)

SuperResolution (pixel / IFOV) (Lens version) 640 x 480 pixels / 1.06 mrad (Standard)

640 x 480 pixels / 0.85 mrad (25° Lens)

640 x 480 pixels / 0.38 mrad (Telephoto)

640 x 480 pixels / 0.17 mrad (Super-telephoto)

Image refresh rate 33 Hz*
Focus auto / manual
Spectral range 7.5 to 14 µm
Image output visual
Image size /

min. focus distance

3.1 MP / 0.5 m
Image presentation
Image display 4.3“ LCD touchscreen

with 480  x  272 pixels

Digital zoom 1- to 3-fold
Display options IR / real image
Video output USB 2.0, Micro HDMI
Colour palettes 9 (iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo)
Measurement
Measuring range -30 to +100 °C /

0 to +350 °C (switchable)

0 to +650 °C (switchable)

Accuracy ±2 °C, ±2 % of measurement value (larger value applies)

(±3 °C of m.v. at -30 to -22 °C)

High temperature measurement – optional Accuracy +350 to +1200 °C (not in connection with the super-telephoto lens)

±2 °C, ±2 % of m.v.

Emissivity / reflected temperature 0.01 to 1 / manual
Transmission correction (atmosphere)
Measuring functions
Display of surface mois- ture distribution (using manual input)
Humidity measurement with radio humidity probe (automatic measurement value transfer in real time)** (✔)
Solar mode
Analysis function up to 10 measurement points, Hot/Cold Spot  Recognition, up to 5 x area measurement (min/max & average), Isotherm and alarm values


*inside the EU, outside 9 Hz

** excepting USA, China and Japan

*** Wireless humidity probes only in the EU, Norway, Switzerland, USA, Canada, Colombia, Turkey, Brazil, Chile, Mexico, New Zealand, Indonesia

**** Bluetooth only in the EU, Norway, Switzerland, USA, Canada, Colombia, Turkey, Japan, Russia, Ukraine, India, Australia

***** depending on the selected set

Imager equipment
Digital camera with Power LEDs ü
Lens version 30° x 23° (Standard)

25° x 19° (25° Lens)

11° x 9° (Telephoto)

5° x 3.7° (Super-telephoto)

SiteRecognition (measure- ment site recognition with image management)
Panorama image assistant
Laser (laser classification 635 nm, Class 2)*** Laser marker
Voice recording Bluetooth****/ wired headset
Video measurement (via USB) up to 3 measurement points
Process analysis package: image sequence capturing in instrument and

fully radiometric video measurement

(✔)
FeverDetection (✔)
Interface LabVIEW, interface description download on the Testo homepage
Image storage
File format single image .bmt; Exportmöglichkeit in .bmp, .jpg,

.png, .csv, .xls

File format video (via USB) .wmv, .mpeg-1
Storage device SD cart  2GB (approx. 1500 – 2000 images)
Power supply
Battery type Fast-charging, Li-ion battery can be changed on-site
Operating time 4.5 hours
Charging options in instrument / in charger (optional)
Mains operation
Ambient conditions
Operating temperature range -15 °C to +50 °C
Storage temperature range -30 to +60 °C
Air humidity 20 to 80 % RH non-condensing
Housing protection class (IEC 60529) IP54
Vibration (IEC 60068-2-6) 2G
Physical specifications
Weight 1570 g
Dimensions (L x W x H) 253 x 132 x 111 mm
Tripod mounting 1/4“ – 20UNC
Housing ABS
PC software
System requirements Windows 10, Windows Vista, Windows 7 (Service Pack 1), Windows 8,

interface USB 2.0

Standards, tests
EU Directive 2004 / 108 / EC
Features testo 885 testo 885 Set
Infrared resolution 320 x 240 pixels
Thermal sensitivity (NETD) < 30 mK
Measuring range -30 to +650 °C
Image refresh rate 33 Hz*
SuperResolution
25° x 19° Lens (✔) (✔)
Telephoto lens 11° x 9° ***** (✔)
Super-telephoto lens 5° x 3.7° ***** (✔)
Auto focus
High temperature measurement up to 1,200 °C (✔) (✔)
Panorama image assistant
SiteRecognition

(measurement site recognition with image management)

Laser marker**
Display of surface moisture distribution (by manual input)
Humidity measurement with wireless humidity probe*** (automatic measurement value transfer in real time) (✔) (✔)
HDMI interface
FeverDetection (✔) (✔)
Process analysis package: image sequence capturing in instrument and fully radiometric video measurement (✔) (✔)
Voice recording using the headset****
Solar mode
Lens protection glass (✔)
Additional battery (✔)
Fast battery charger (✔)
